smart lighting
Magnetic Adjustable Spotlight
LY103-MTMTS magnetic adjustable spotlight series is available in four wattage and size configurations. The Bridgelux LED fixtures support multiple beam angles and tunable colour temperature.
Key highlights
Designed for everyday control
Available in 7W
12W
18W and 24W
multiple beam angles

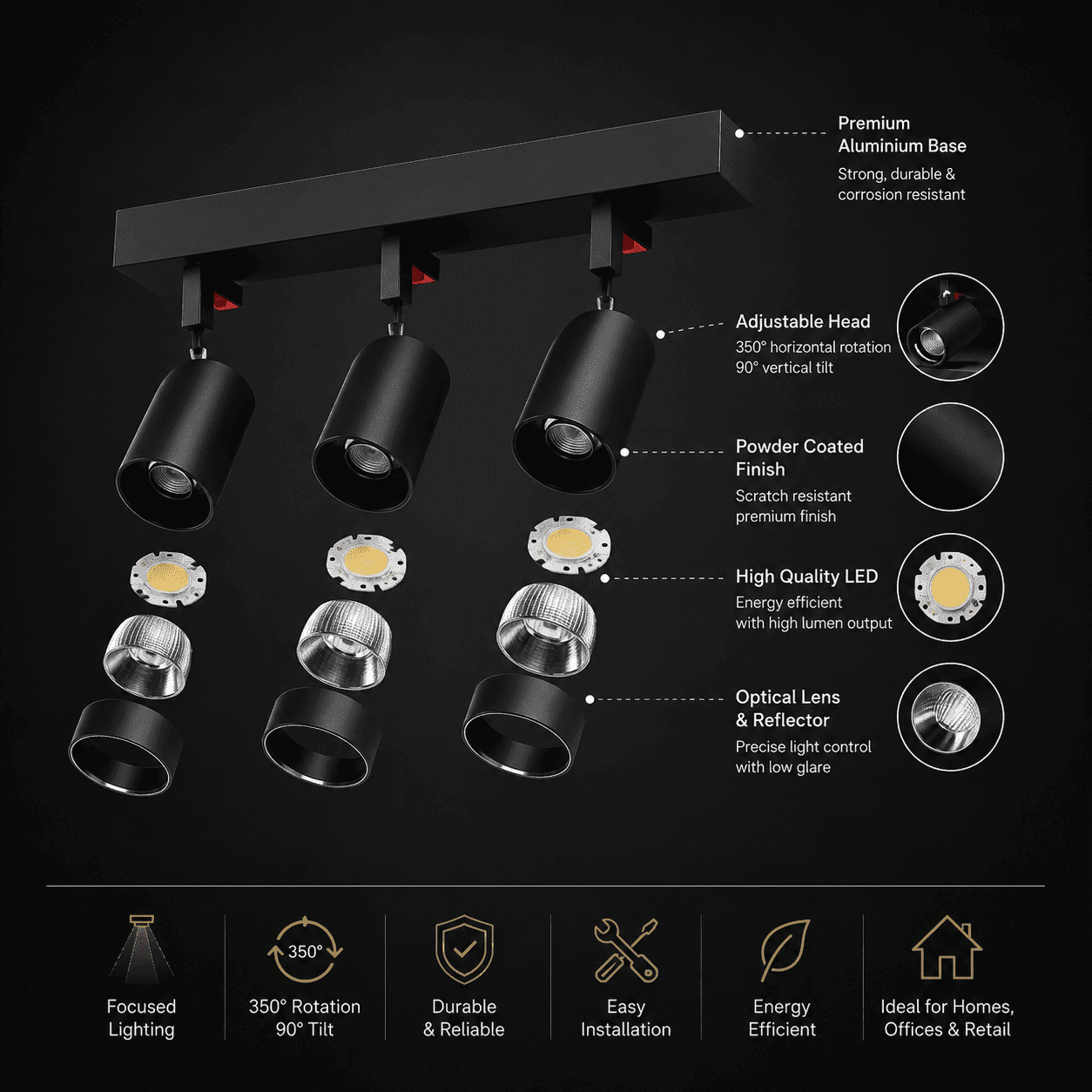

Product blueprint
Technical specifications
Core product, electrical, material, and installation details in one clear reference.
- model series
- LY103-MTMTS
- models
- LY103-MTMTS07W, LY103-MTMTS12W, LY103-MTMTS18W, LY103-MTMTS24W
- available wattages
- 7W, 12W, 18W, 24W
- material
- ALUMINUM DIE CASTING
- led brand
- BRIDGELUX
- beam angles
- 15°, 24°, 38°, 60°
- luminance
- 120 Lm/W
- cct
- 3000K to 6500K Tunable
- cri
- >90
- variants
- Model: LY103-MTMTS07W • Wattage: 7W • Dimensions: 40 × 90 mm, Model: LY103-MTMTS12W • Wattage: 12W • Dimensions: 40 × 120 mm, Model: LY103-MTMTS18W • Wattage: 18W • Dimensions: 50 × 135 mm, Model: LY103-MTMTS24W • Wattage: 24W • Dimensions: 63 × 145 mm
